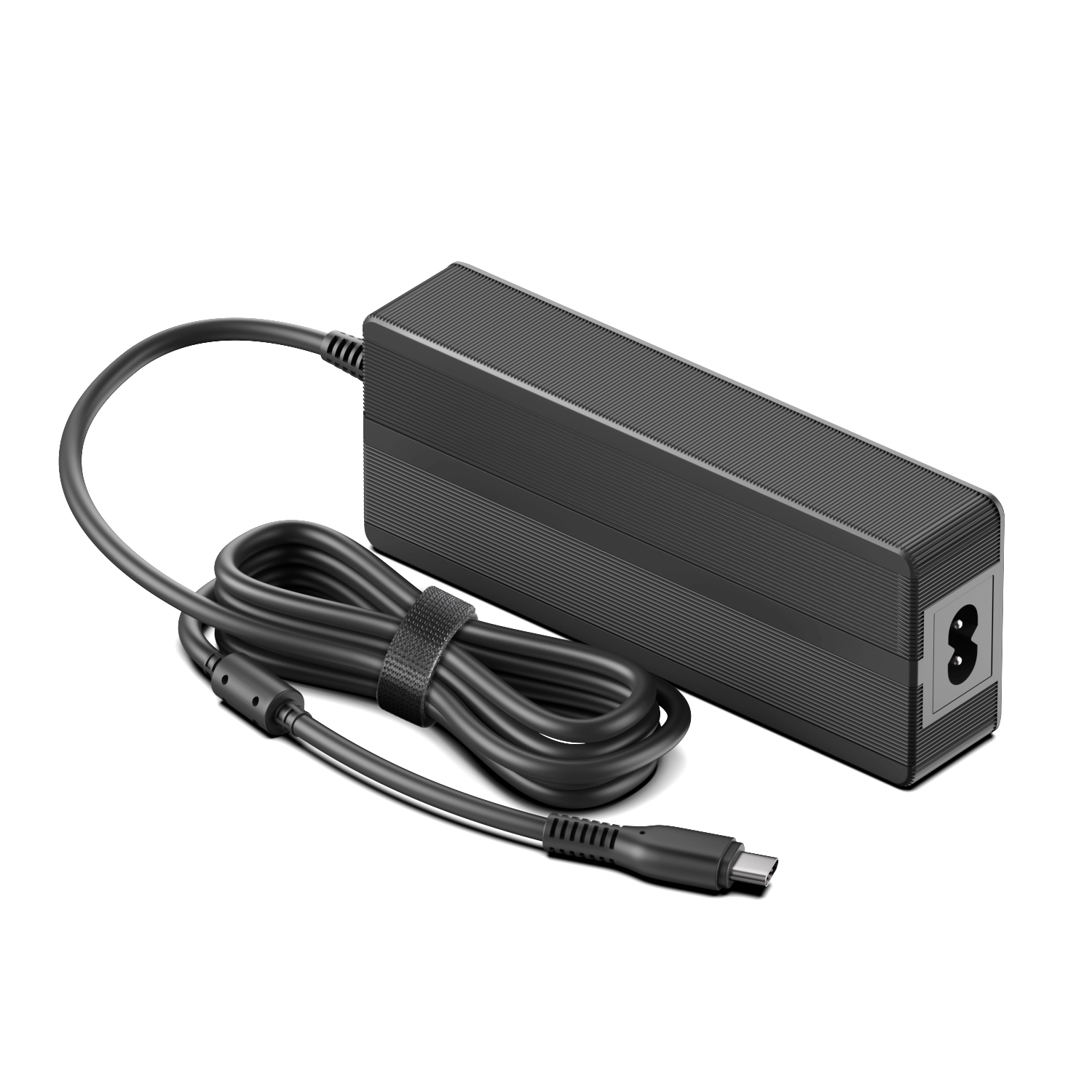

GaN PD140W Medical Power Adapter C8 Inlet

  • A100-C8-60601-PD140W

  • 5V-28V

  • 5A

  • CE

Availability:

 Quote Criterion

3.1 Safety:accord with

1:EN 60601-1:2020,

2:IEC 60601-1:2020

3:UL 60601-1:2020

3.2 EMI STANDARD

①EN 60601-1-2:2015+A1:2021

②47 CFR FCC Part 15, Subpart B, ANSI C63.4-2014


Input :100-240V-50/60Hz 2.0A Max

Output: 5V 3A , 9V 3A, 12V 3A, 15V 3A, 20V 5A , 28V 5A  140W

Size: 145.9*59.2*28.5 mm

IC solution: Cypress PD3.1

DC cable: 1.8 meters

Certificates: CE

Protection: OVP, OCP,  SCP

Warranty:5 years

OEM ODM :YES




download A100C8-PD140W-60601.pdf
